Portable Traffic Signal

RCF3.4

North America Traffic designed the RCF 3.4 portable lane control signal to maximize visibility and safety in long-term applications.
  • RCF3.4 Image 124
Open Menu
Features Resources Options Request More Info RAQ
  • Bright LED lights for 100,000 hours of continuous use
  • Large Full Colour Display- 480p LCD display with easy to read menus and intuitive setup process
  • Compliant with both the MUTCD and NEMA TS-5 standards
  • USB Drive- backup traffic control plans and download log files and performance history for an additional level of data securement
  • The optional hand held remote control feature allows operators on-site to manually control traffic from a safe location
  • Two-minute set-up time
  • Lightweight, compact design
  • Easy to use, intuitive controller (PLC)
  • Can interact with the PTL2.4x for unique or complex applications
  • Up to 21 days of continuous operation without sunlight
  • 100 watt solar array
  • 8 batteries - 6 volt deep cycle

Resources

Product Brochure

Download Brochure

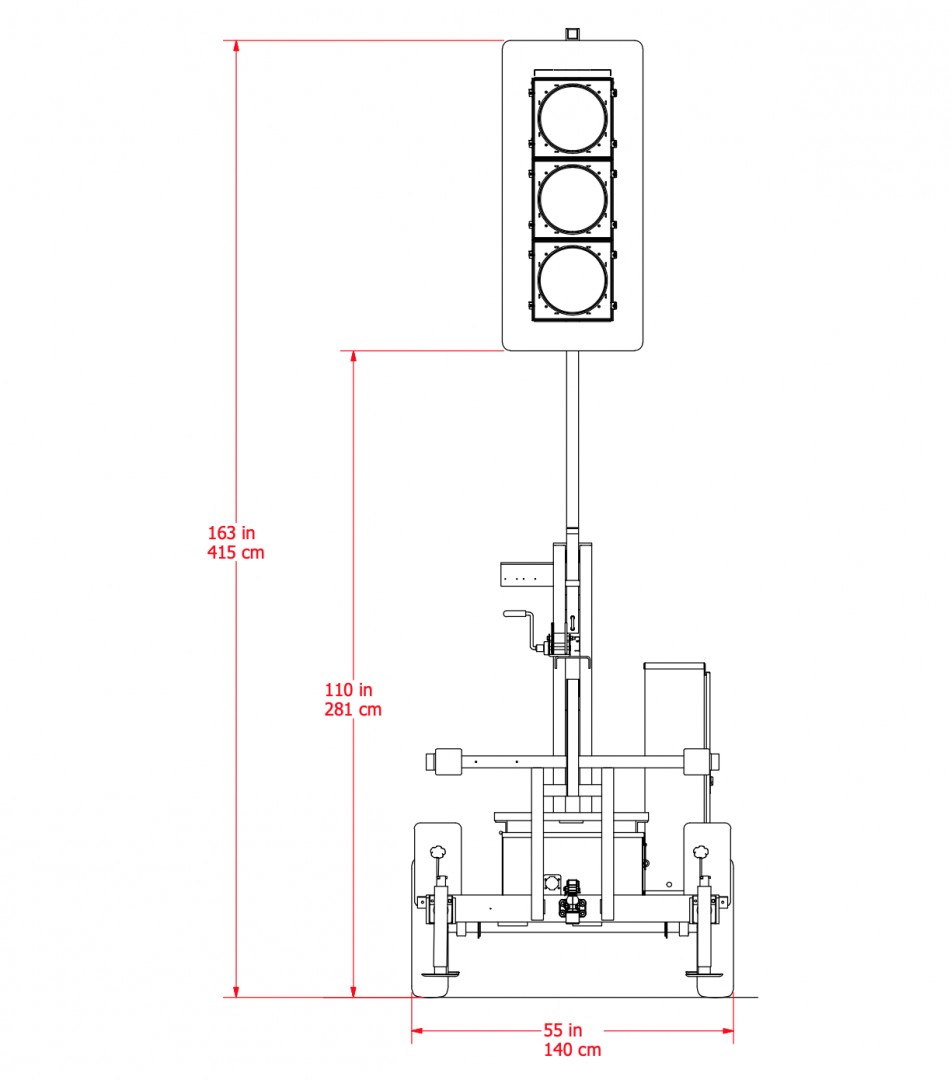

Product Dimensions

AWF 2.8
Traffic Sensor

Microwave Traffic Sensor

Microwave Sensor that detects approaching vehicles to initiate a green cycle on triggered unit.

Directional Antenna

Directional Antenna

Enables increased communication reliability in areas or setups where the standard omni-directional antenna is not suitable. Quick plug and play installation and 2-5 miles communication (with a clear line-of-sight) depending on signal model.

Video Monitoring

Video Monitoring

High definition recording and monitoring of work zones. Record 24/7 for 7 days for security of equipment and workers.

Intrusion Alarm

Intrusion Alarm

The addition of an intrusion alarm is an added safety feature. If the sensor's infrared beam is broken, an alarm signals the entire job site that a vehicle or pedestrian has unsafely crossed into the work zone.

Timer Control Unit

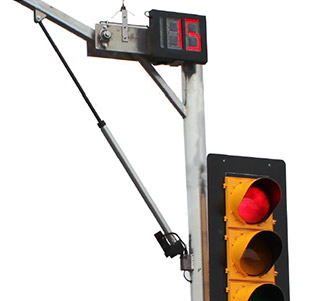

Countdown Timer Display

Positioned above or below the signal lights, the LED display counts down the time remaining on the red signal.

Wireless Intersection Interface

Wireless Intersection Interface

Allows a permanent intersection controller to run the signal lights - bypasses NAT controller functions.

Wired Intersection Interface (ITS box)

Wired Intersection Interface (ITS box)

Allows a permanent intersection controller to run the signal lights - bypasses NAT controller functions.

Wireless Video System

Wireless Video System

Allows the operator to be safely positioned in a work vehicle, while still safely visually monitoring and controlling traffic flow.

Remote Monitoring System (RMS)

Remote Monitoring System (RMS)

The RMS provides the user with peace of mind, knowing that the portable traffic signal system is under 24/7 monitoring. Real time updates are provided by means of text message and/or email. The user can login to a secure website to view fault and data logs, battery voltage, trailer location and operations status. The user can also set up a permissible physical area of operation to prevent theft. Should the signal trailer move outside the defined area, the user will be immediately notified by text/email of the movement violation.

Hand Held Remote

Hand Held Remote

Manual operation by means of a wireless hand held remote with three color coded buttons. Red - All Stop, Green - Phase 1 green activation, Black - Phase 2 green activation.

Hardwire Controller

Hardwire Controller

Used to hardwire two units together for wired communication. This negates wireless communication and omits HHR function.

AGM Batteries

AGM Batteries

Low maintenance and autonomy is comparable to the flooded lead acid batteries and able to better withstand freezing temperatures.

Request More Info

We would be pleased to provide you with a User Field Guide, Manual, or Technical Specifications. Please complete the form below. We will require the Serial number of your unit in order to ensure that you get the correct documents.

What product are you looking for?
Please check all that apply

What material are you looking for?
Please check all that apply

RAQ
