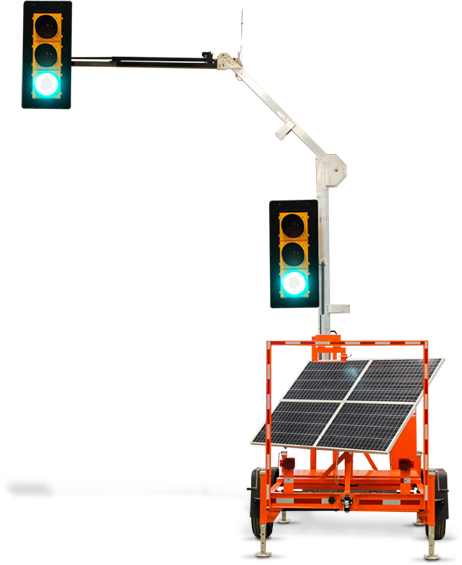

Portable Traffic Signal

PTL2.4x

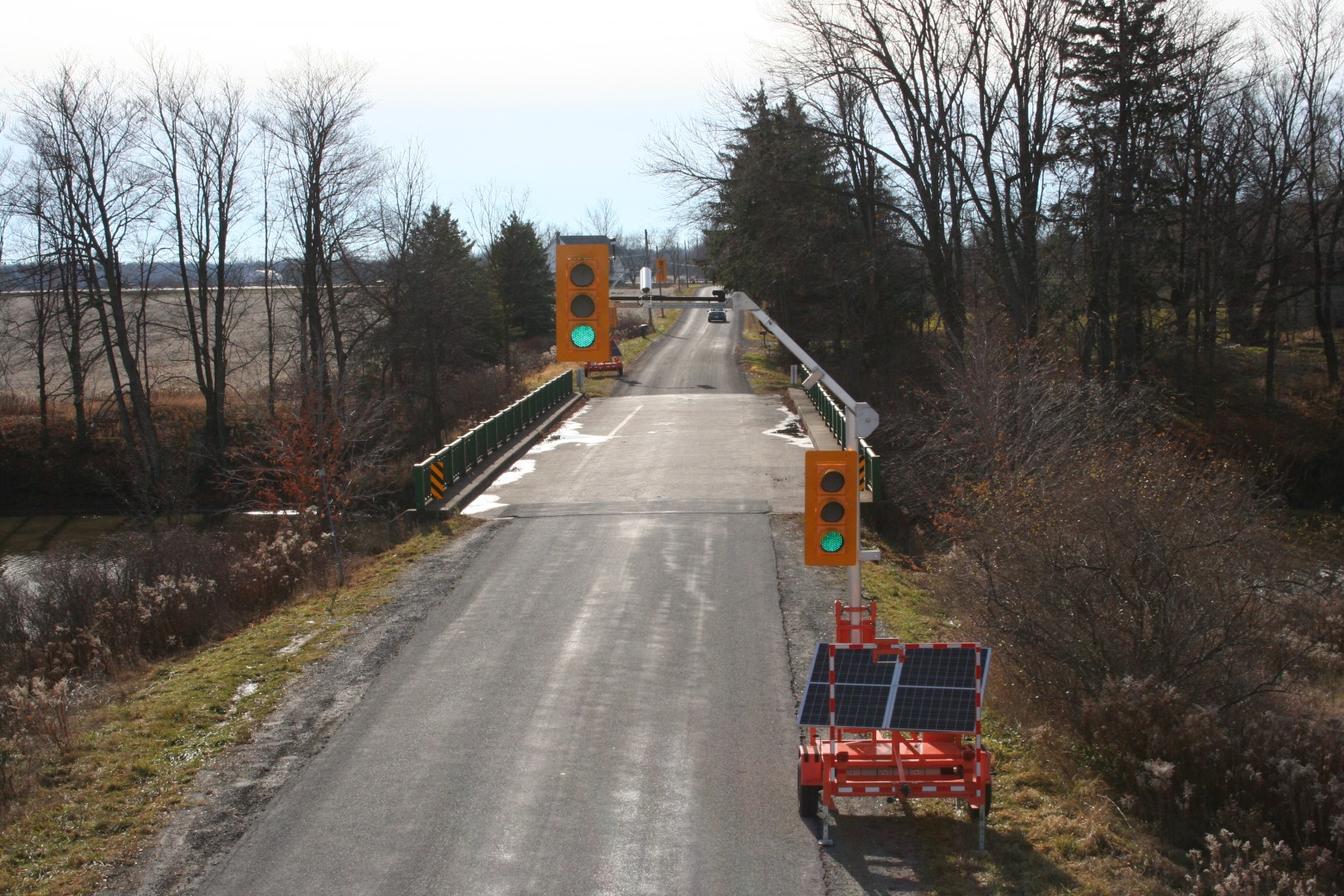

The reliable PTL 2.4x Portable Traffic Signal is engineered for safety in work-zones, cross roads and intersections.
  • PTL2.4x Image 125
Open Menu
Features Resources Options Request More Info RAQ
  • Use up to twenty signal trailers on a single site – for work zones with high quantities of intersecting driveways and/or side roads
  • Ring and Barrier Advanced Setup – highly complex traffic control, by means of easy setup with minimal traffic engineering knowledge
  • Compliant with both the MUTCD and NEMA TS-5 standards
  • Large Full Colour Display – 480p LCD display with easy to read menus and intuitive setup procedures
  • Electric actuator lift system
  • USB Drive – backup traffic control plans and download log files and performance history for an additional level of data securement
  • Dual-head with custom features for increased visibility
  • Radio communication capability of one mile (1.6 km)
  • Up to 30 days of continuous operation without sunlight
  • 400 watt solar array with 360 degrees rotation range and tilt range of 0 to 60 degrees
  • 12 to 16 batteries – 6 volt deep cycle

Resources

Product Brochure

Download Brochure

Promotional Video

 Watch other videos

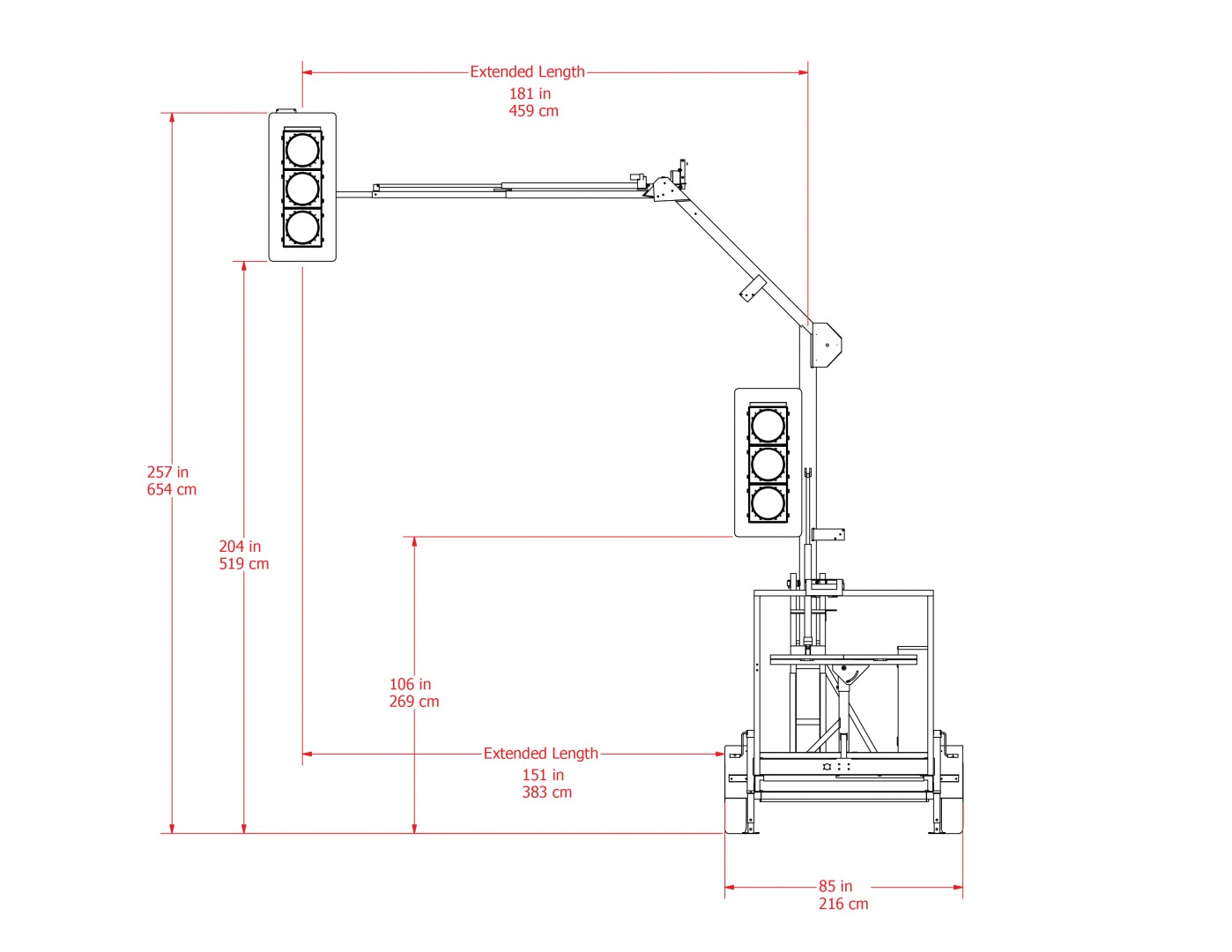

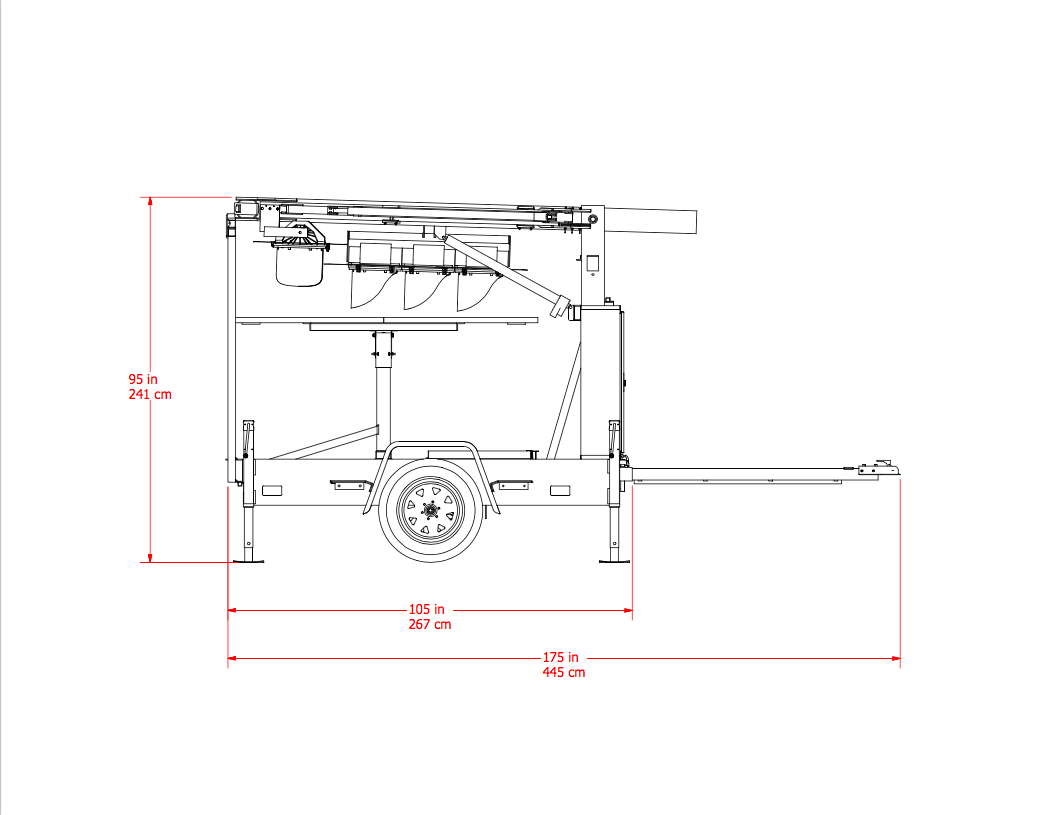

Product Dimensions

PTL2.4x Dimensions PTL2.4x Dimensions PTL2.4x Dimensions

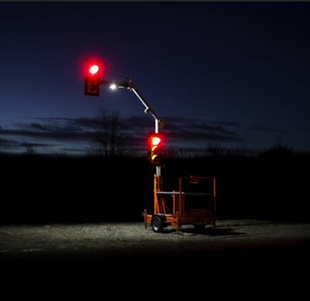

Illumination Add-on Kit

LED Illumination

Available on the PTL2.4x and exceeds MTO specification of 22,000 Lumens.

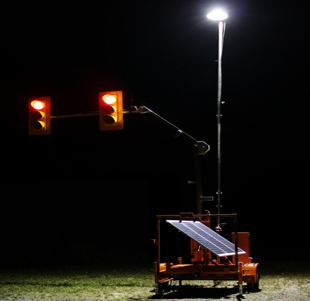

LED Illumination with Battery

LED Illumination with Battery

Battery operated LED Illumination available on the PTL2.4x (installed on mast arm).

Timer Control Unit

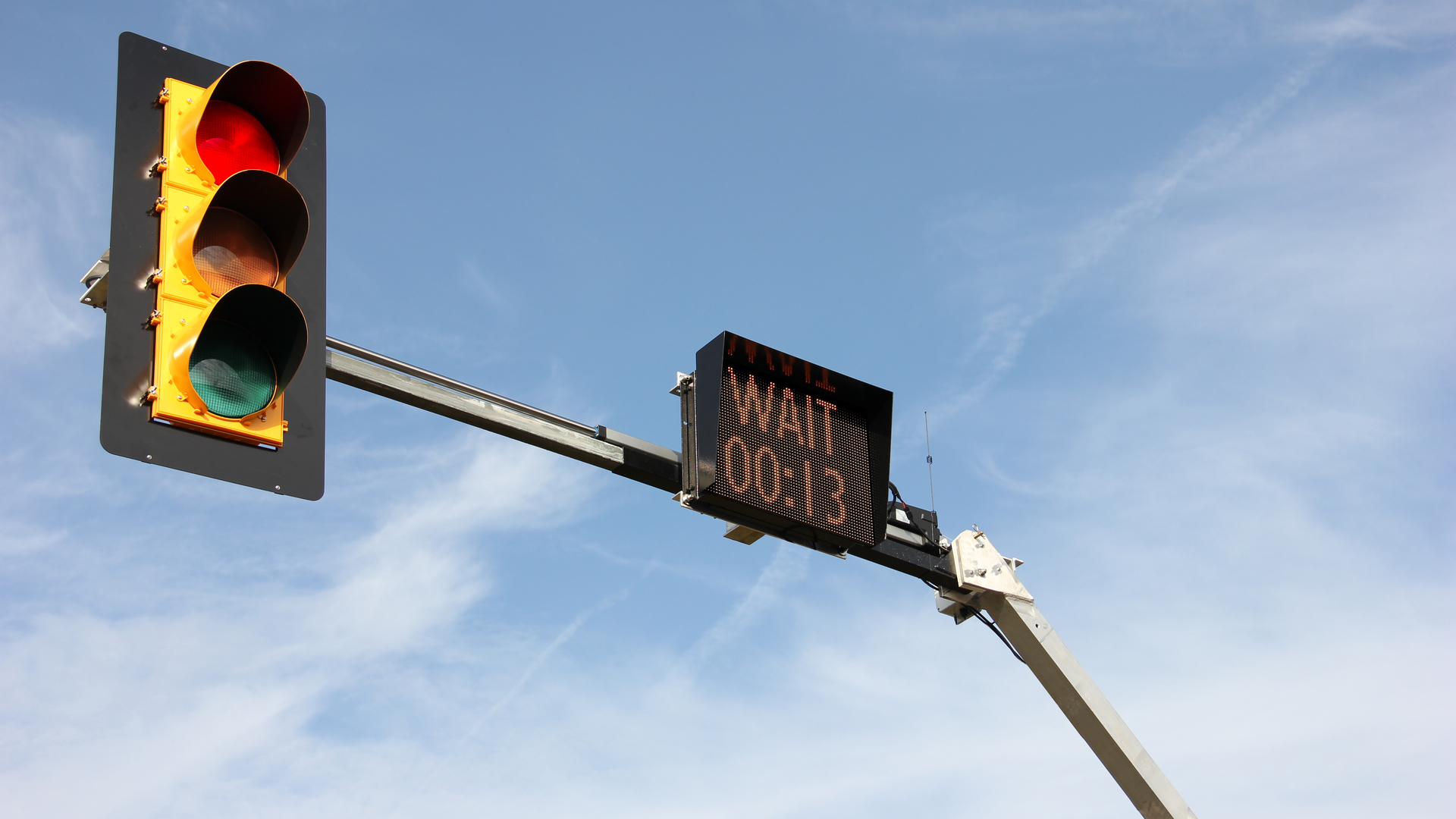

Countdown Timer Display

Positioned above or below the signal lights, the LED display counts down the time remaining on the red signal.

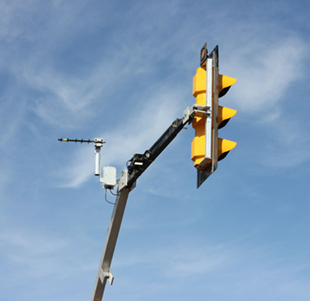

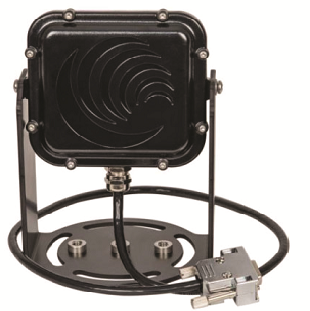

Directional Antenna

Directional Antenna

Enables increased communication reliability in areas or setups where the standard omni-directional antenna is not suitable. Quick plug and play installation and up to 7 miles communication with a clear line of sight.

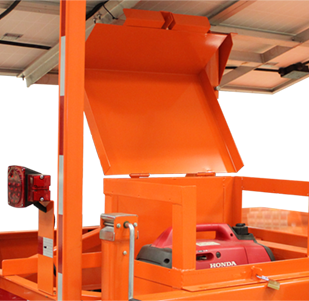

Generator Mount

Generator Mount

Used for housing generator or 4-6V batteries for Illumination or charging applications. Available on the PTL2.4x. ***Generator not included

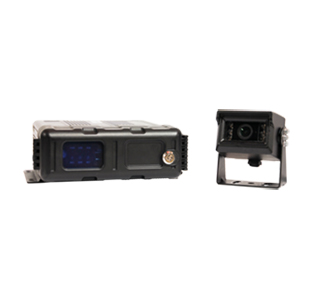

Video Monitoring

Video Monitoring

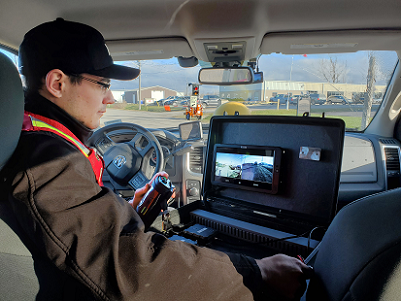

High definition recording and monitoring of work zones. Record 24/7 for 7 days for security of equipment and workers.

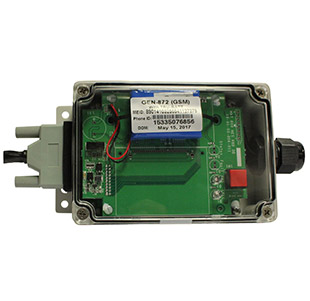

Remote Monitoring System (RMS)

Remote Monitoring System (RMS)

The RMS provides the user with peace of mind, knowing that the portable traffic signal system is under 24/7 monitoring. Real time updates are provided by means of text message and/or email. The user can login to a secure website to view fault and data logs, battery voltage, trailer location and operations status. The user can also set up a permissible physical area of operation to prevent theft. Should the signal trailer move outside the defined area, the user will be immediately notified by text/email of the movement violation.

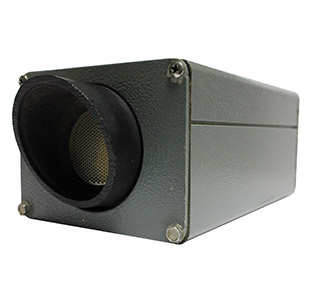

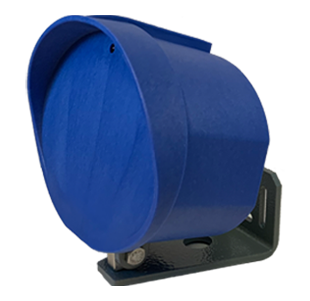

Traffic Sensor

Microwave Traffic Sensor

Microwave Sensor that detects approaching vehicles to initiate a green cycle on triggered unit.

Presence Sensor

Presence Sensor

Works the same as a Traffic Sensor but detects the vehicles presence in the zone. Ideal for low speed detection applications (driveway).

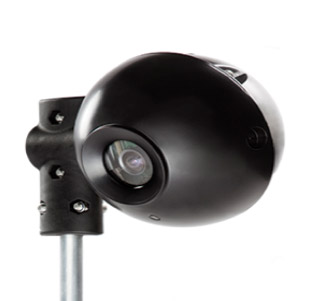

Traficam Video Detection

Traficam Video Detection

Video Detection - creates zones in the video area triggered by a vehicle, initiating a green cycle on the unit.

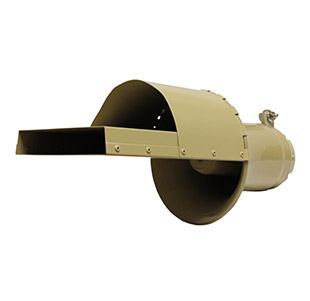

Sonem Audio Pre-Emption

Sonem Audio Pre-Emption

Used to turn signal Green for approaching emergency vehicles. Triggered by Class "A" sirens.

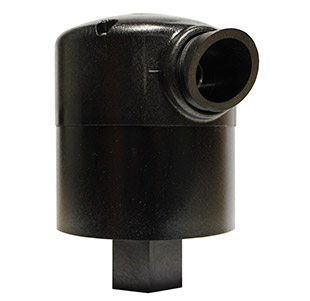

Strobe Detection Pre-Emption

Strobe Detection Pre-Emption

Used to turn unit Green for approaching emergency vehicles. Triggered by strobe emitter on emergency vehicle.

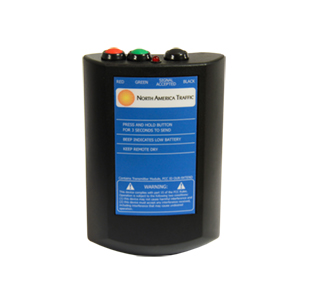

Hand Held Remote

Hand Held Remote

Manual operation by means of a wireless hand held remote with three color coded buttons. Red - All Stop, Green - Phase 1 green activation, Black - Phase 2 green activation.

Hardwire Controller

Hardwire Controller

Used to hardwire two units together for wired communication. This negates wireless communication and omits HHR function.

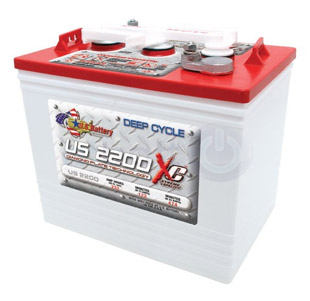

AGM Batteries

AGM Batteries

Low maintenance and autonomy is comparable to the flooded lead acid batteries and able to better withstand freezing temperatures.

Battery Upgrade (add 4)

Battery Upgrade (add 4)

Upgrade unit from 12 batteries to 16 batteries. Increase the autonomy from 24 days to 30 days.

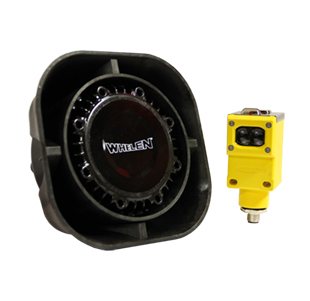

Intrusion Alarm

Intrusion Alarm

The addition of an intrusion alarm is an added safety feature. If the sensor's infrared beam is broken, an alarm signals the entire job site that a vehicle or pedestrian has unsafely crossed into the work zone.

Wireless Intersection Interface

Wireless Intersection Interface

Allows a permanent intersection controller to run the signal lights - bypasses NAT controller functions.

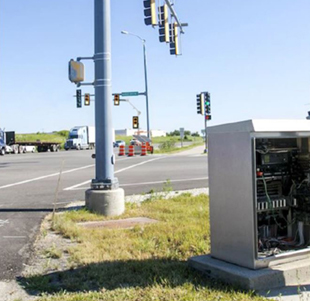

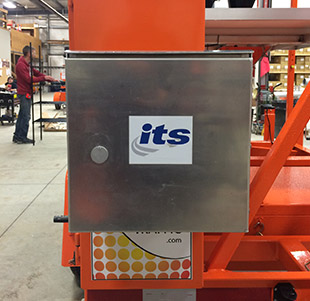

Wired Intersection Interface (ITS box)

Wired Intersection Interface (ITS box)

Allows a permanent intersection controller to run the signal lights - bypasses NAT controller functions.
