Automated Flagger Assistance Device

RCF2.4

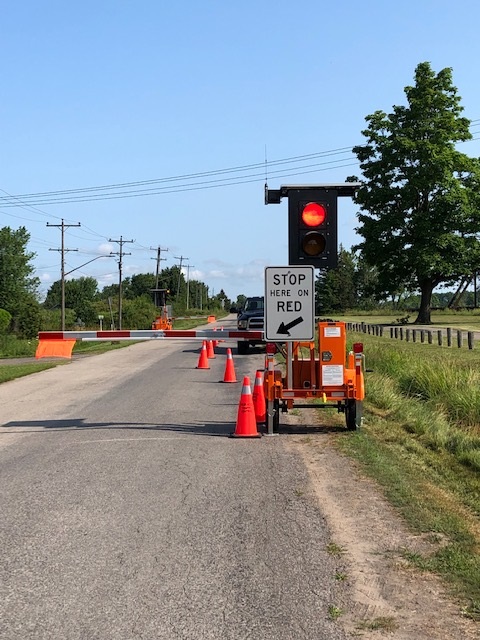

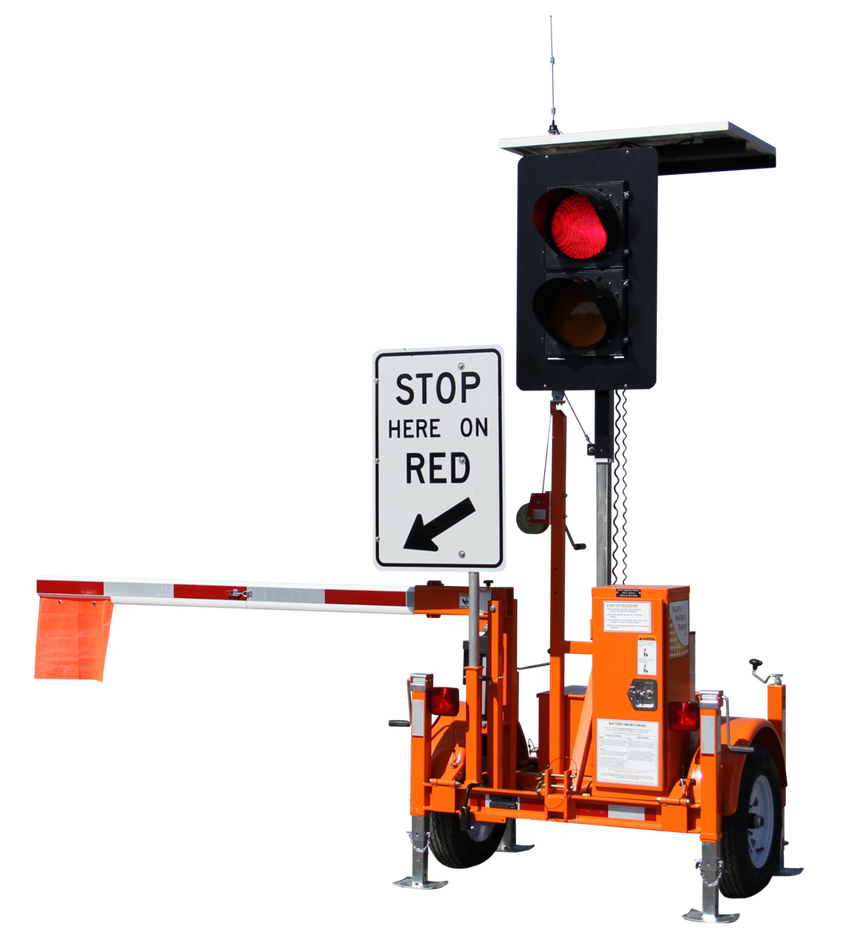

The RCF 2.4 Automated Flagger Assistance Device (AFAD) was the first of its kind developed by North America Traffic over 20 years ago. The AFAD, used on many DOT jobsites, is still recognized today as the safest alternative to human flaggers for temporary, short-term work-zone traffic control.
  • RCF2.4 Image 131
  • RCF2.4 Image 132
Open Menu
Features Resources Options Savings Calculator Request More Info RAQ
  • Register for Free Training
  • Single-head, red/yellow lenses
  • Highly reflective, break away gate arm
  • Compliant with both the MUTCD and NEMA TS-5 environmental standards
  • Manual remote control operation
  • Flaggers are at a safe location off the road

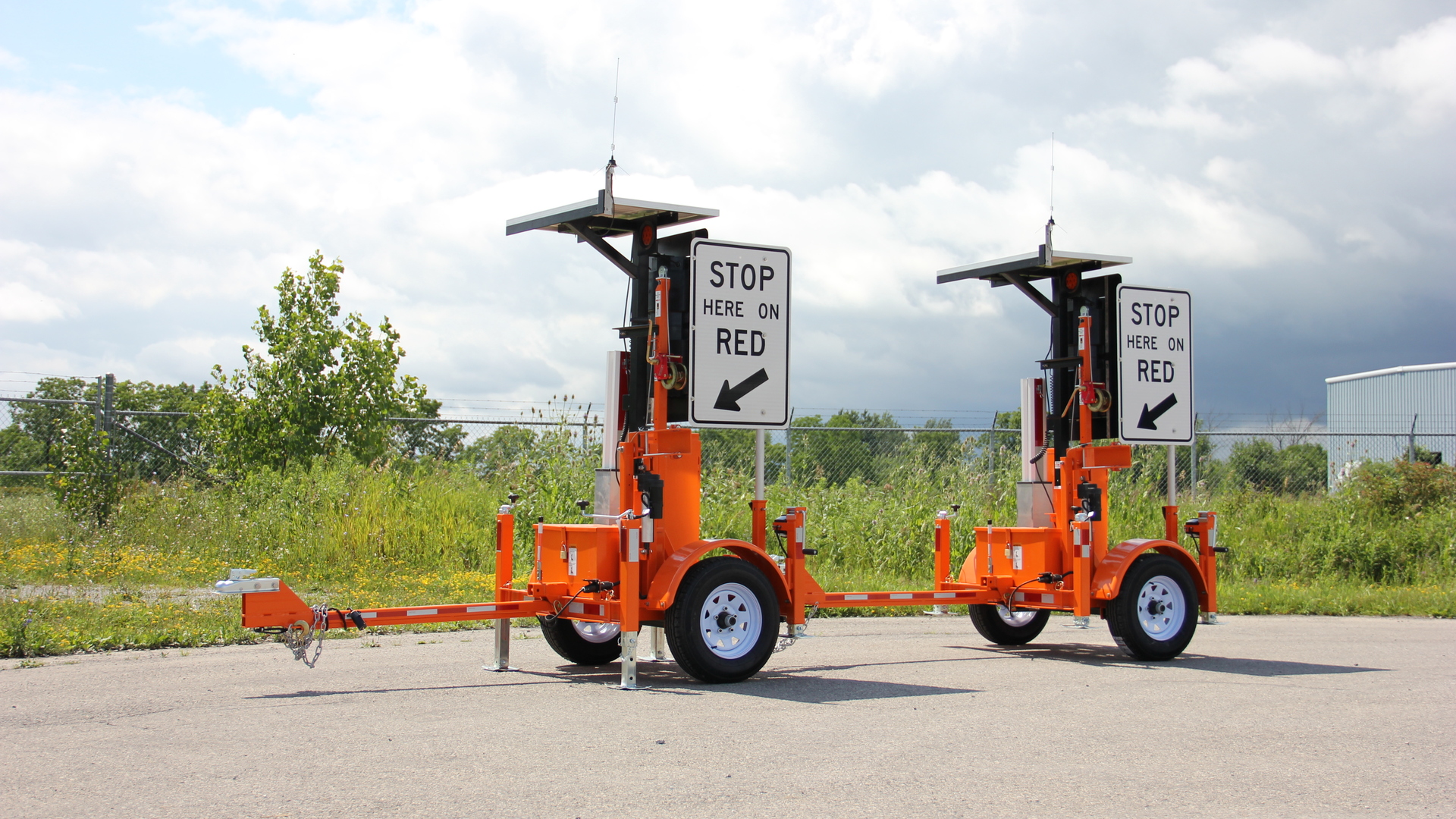

  • Two AFADs lock together for towing as one unified trailer
  • Tandem tow option available
  • Intuitive controller
  • Optional Intrusion Alarm for audible worker notification alert
  • Portable, compact
  • Autonomy of 228 hours before recharge is required
  • 100 watt solar array
  • 4 batteries – 6 volt deep cycle

Resources

Product Brochure

Download Brochure

Promotional Video

 Watch other videos

Video Monitoring

Video Monitoring

High-definition (1080p) recording and monitoring of work zones, with optional 4G LTE remote access, for the security of equipment and workers. The standard system records up to 384 hours (16 days) of video data, before memory overwrite occurs. The total storage capacity can be expanded to 768 hours or 32 days of video data.

Intrusion Alarm

Intrusion Alarm

The addition of an intrusion alarm is an added safety feature. If the sensor's infrared beam is broken, an alarm signals the entire job site that a vehicle or pedestrian has unsafely crossed into the work zone.

Hand Held Remote

Hand Held Remote

Manual operation by means of a wireless hand held remote with three color coded buttons. Red - All Stop, Green - Phase 1 green activation, Black - Phase 2 green activation.

Directional Antenna

Directional Antenna

Enables increased communication reliability in areas or setups where the standard omni-directional antenna is not suitable. Quick plug and play installation and 2-7 miles communication (with a clear line-of-sight) depending on signal model.

Wireless Video System

Wireless Video System

Allows the operator to be safely positioned in a work vehicle, while still safely visually monitoring and controlling traffic flow.

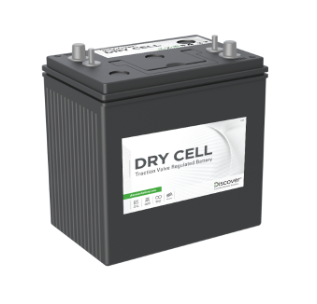

AGM Batteries

AGM Batteries

Low maintenance and autonomy is comparable to the flooded lead acid batteries and able to better withstand freezing temperatures.

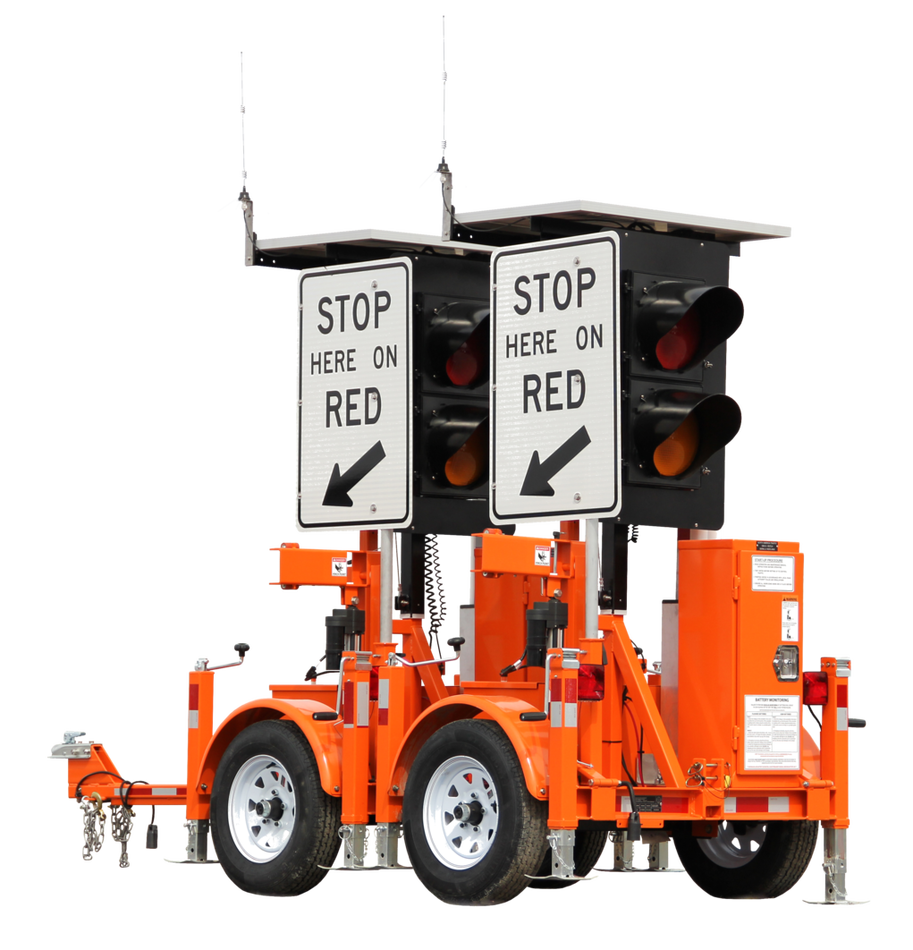

Tandem Tow Option

Tandem Tow Option

Tandem towing configuration for models manufactured after August 2021

Savings Calculator

RCF2.4

$
Unsure of the cost? We can help with that.

Utilization Information

$

Usage Hours/Year

Hourly Cost of Ownership

Depreciated Cost

Insurance Cost

Per Hour C.O.O

+

Hourly Cost of Maintenance

$
$
$

Per Hour C.O.M

=

Hourly Cost

Annual Cost

Flag-Persons vs. AFADs

$

The Bottom Line

Hourly Rate for
2 Flag-Persons

Hourly Rate for
1 Flag-Person and 2 AFADs

Total Hourly Savings
1 Flag-Person and 2 AFADs

Total Annual Savings
1 Flag-Person and 2 AFADs

*Over the life of the unit

  • Estimates do not include freight from factory
  • Estimates do not include operator site setup and delivery

Request More Info

We would be pleased to provide you with a User Field Guide, Manual, or Technical Specifications. Please complete the form below. We will require the Serial number of your unit in order to ensure that you get the correct documents.

What product are you looking for?
Please check all that apply

What material are you looking for?
Please check all that apply

RAQ

What They're Saying


The physical setup of the PTL 2.4x is quick and easy, as is the controller programming. I have yet to see another manufacturer with equipment as user-friendly as NAT’s.

Dave Stickney
Contractors Rental Supply
We can help make your job
site traffic safe & efficient
